Discuss Different types of Parts Of Sewing Machine with figure and also Functions of different parts of a sewing machine.....

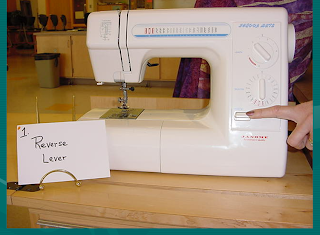

01. Reverse Lever: The reverse lever allows you to stitch in reverse. We use reverse to make our stitches secure at the beginning and end of seams.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgV_VLEBN5YvgoD02R-U9PCdrlKHVnDj1ahKQYBJ2R8HFbMfxY-6kCjF3T6XpXA4tGLs0E8qNrN_5BmE9FiyPFXG1QADy6qaeTW_pTT78u_xHhi4w2q9kjkLaM99NYBKJfdBZWwQtcJtHo/s320/01.Reverse+Lever.png)

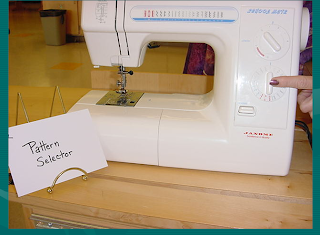

02. Pattern Selector: The pattern selector lets you determine what kind of stitch you will be making, such as straight stitches or an embroidery stitch or zig-zag.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhEKGXiwhpH-F9P4bqEV4RnqyHWAWSsfhQ1XHSF7HeHMNjQaO27-2uY18SDJUTU6JPtwW9MEHRukDTb6v0TDIPN6gUerX7TpdyZY2bbrrpxQxkQ1lX4rDllQhhQFgA0XZS33YXMvLN7lE4/s320/02.Pattern+Selector.png)

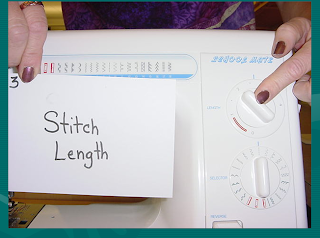

03. Stitch Length: Stitch length determines the length of the stitch.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh3Sa-9iMGwfKmvMBYtLttcM4ZqJsV6w5y6tZCvbhijPCmIOialUGQyIwfjJcLiA7wRKG2vWLMX1gaxOFcQjYauBLEjv8eBBcnPn4qZLNY4xFiWE6ACl-FjZQKDY3-hGWQfPP40TRJcdyg/s320/03.+Stitch+Length.png)
04. Bobbin Winder: The bobbin winder winds the thread from the spool to the bobbin, mechanically.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjB8sVbq7PBQbw2-A8SEQiTSkuWViW0NT98vh7T7FsIqUfiieBa_t_5smJuiH8wwoiTOsl4m3WsRpLu1doSy4Km5Uv_WEqIPZ9GXxo7AhZZUaUFaU7MuTTS3wn7HpSncxZ8aXjOHAd5Fvs/s320/04.+Bobbin+Winder.png)
05. Spool Pin: Spool pin holds the spool of thread.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEisoRuCudsi6b8zjJ1XwUPnJhrvtX_jJUWSO9R2jrO0mKvMeM1Cupdm3Dlt8-PwENgbW-GJQprw4usuFOW3HcYeae9ZlHquH2UsWBUx77EFK63Fdm7VfEdHvz9qeZs7L32WZVFXmFZ6Zb0/s320/05.+Spool+Pin.png)

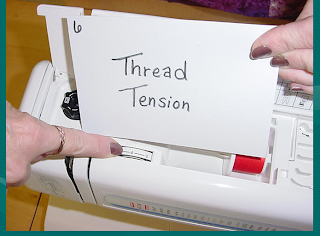

06. Thread Tension: Thread tension determines the tightness or looseness of the stitch.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjZmedI57HUVkZqFX_hPSH5VJmlgQbkGxh2wjGaHPWjlCUXSx9txJzXl2Rn1S0mppr6TzBjoyAVkGdbaMYeUSmEQ-Qcxm00DF5PfAk0_6tXyqdaG5lXfgcwmN-N-7vtwPadgW9qVh4-1YE/s320/06.+Thread+Tension.png)

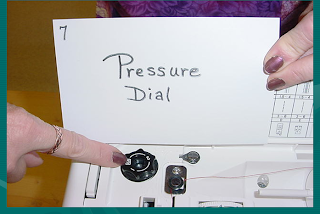

07. Pressure Dial: The pressure dial determines how much pressure the presser-foot will have on the fabric.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEg48FMnB2leJqg1nZBSg_djMUBW-whPQ15C2BUQ6KUPxj2FVKdjBHfkOg26WEwe4xxW7DH6GIBLmUgkBo5RIXamtXZ_54ogwXUFqMJMDbb7SVSnpeGz93Jk642ph-hisHP_fcSaljlde6A/s320/07.Pressure+Dial.png)
08. Face Plate: The face plate is a cover that covers all the inner working parts of the sewing machine.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgLINmpSJ8_LteVFRW0cMt6yGHDppubOioISLZ7SGOi4seO43orPFFlketZdsGRzCjr2Lt7aG4ymNkjSC_iVfupo81aqQXhyphenhyphenUQ0MTTylo4T6m6fwZfdvYkxYzEXDVCK18g6JhoWJaP6xvU/s320/08.Face+Plate.png)

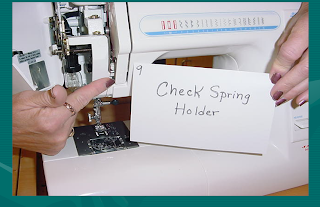

09. Check Spring Holder: The check spring holder is actually hidden in our machines. It works with the thread tension to slow down the amount of the thread going to the needle.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiNuxJ-CtyuqQKMl4RnaRCvjb5ZGpelec69j95m0XgrqMSUrYw5rAeN5LOvwbXf7LwlS_5Eexc5T0TuQ-CTbf1Ru_lGACNM9K_jMAZm67Ot3wBlLMYgzpJHf7QWWqqQe0PT7c_KfeFgrPo/s320/09.+Check+Spring+Holder.png)
10. Sewing Light: The sewing light helps you to thread the needle and to see your stitching; both day and night.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjMUFeA15MB3Bxb5m3mMdbFDCjI4IMpWBZQAoHSAJZuYRrq7O6d-pTMGpK-UyRIWlj4UtMw0weXgOIkY30nDp6LHDBkidd89AiWSQgv6EWAep7RhfvSSl4n2tbjRG_dYGf121GTvk-wq6g/s320/10.+Sewing+Light.png)
11. Feed dogs: Feed dogs are a “teeth-like”part that works with the presser-foot to pull your fabric through the machine.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhGHVVFzhKX2kAHT_hbKO4aAObSnEj8EhTX0HEzrliDGXyNzzShGJPRq_aY5G6Bg6j8eK25EV4kIgQwACug_Qf49xx5ccDYwRd7IH2U4wFQl_780nKOtwP3e9A_gK75_IUjELASvXDFUfs/s320/11.+Feed+Dogs.png)
12. Throat Plate: The throat plate has stitching guide lines on it and has a hole for the needle to pass through to the bobbin casing.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhayVtG_LJJvS0avrzJ0M5NKDKx9LjwGmZJTVnfPAkiWTP2y7gzvBWIJRvX8q3H1CmZnt8e1hmtPteGj5r9HEpxI3mD2KE1Dn_aHYCis4XhFLnX4ar398PoSDwHbwi1x0Hz-rNNupHmR4M/s320/12.+Throat+Plate.png)

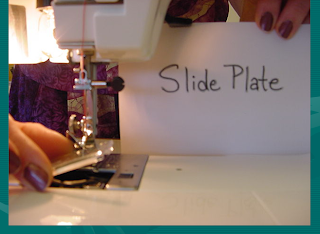

13. Slide Plate: The slide plate is a clear plastic cover that covers the bobbin case to keep dust and dirt out of the moving parts area of the bobbin case.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgLSzWO7pNh7c87UuoHJ__d5n8gGgQyW4b119br8EHSJpR2QtIJ73phPZE-eIx9SJAV32Nfn4-qYxe7XB_HMADQ66dEzhu2JdWy9f6o0sri2RyHuYMyufg8vX6cpXh4yjD62ezvqyyg2Og/s320/13.+Slide+Plate.png)

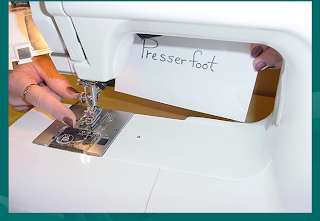

14. Presser Foot: The presser-foot holds the fabric against the feed dogs; so the feed dogs can pull your fabric through the machine.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgy-lfX0RS7Je_adkV_6iHK8I4Ftc_LIv8ugpVK2tTUup53GWI0nKy0o_86L2E8YPjUFuBajF64r43XrJr3M1SIYpItQLJ5iuD0Fp5mdYAH__zuMsBkPdBobNwUKOs1fJo0pHSBhzn70LA/s320/14.+Presser+foot.png)
15. Needle Clamp: The needle clamp is a black clamp that tightens to hold the needle in place.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEiyn_8jbzrL72bTMJTF8NESLDKojHhcau7MlALmhuSwYm_Ta_tESQHlVMHxOob9KsCfpKqnsmTGmE3ine4Iqj5x_ezJ1YsnlVhRysJBoOOdm_aBma3RoVExPYObpTe1DAuwa-enl8dH-ds/s320/15.+Needle+Clamp.png)
16. Presser-foot Lifter: The presser-foot lifter gently lifts the presser-foot up and lowers it against the feed dogs.Note: the presser-foot must be lowered before you begin to sew; or fabric will not move through the machine.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEinVibQ3ZYhcQXqvXN-blIrgECe7B-yzt3Fqfgh_BcmnxWfU9Sioc4ibB2ds8cr8z3Bh8WPoeVxfNU8Ca-tV8NtXTkWOGQUJV4vdmlsjfdQKI5wqqkQwPO2ws6ezrMoiQmh6Y_g7K29X5c/s320/16.+Presserfoot+Lifter.png)

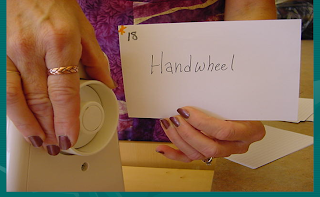

17. Hand Wheel: The hand wheel raises and lowers the needle. You must always pull the hand wheel towards yourself to prevent tangling of the threads.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEizVIBybzz-CN8yohaXGfcWbL-i9lnE35szmLRUDuY0VVh_VbQ3AOiBG32eYO_PyrPU-zfy8iqJX5t7jFwSWjYDikXqT939oRH39W3Rx2jXfLo16UkA9lbiOuDFaKRaTsYOeJKcJO49M_4/s320/17.+Hand+Wheel.png)
18. Power Switch: The power switch turns on the power on the sewing machine and also turns off the power, electrically.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgaa2rLad33Tbnt5C0nBjUReBT3fbzWaxolPCui2wYMVLPA8-1MKP72Y1DzfanRhLAn_KZCA_vfwhzvMvDirgEMwgKyFMJBuLWft7mfoO9qgiTInZ42LVOrJURlAZWNOekQXRNbZzhWPxg/s320/18.+Power+Switch.png)
19. Power Socket: The power socket connects the power source to the sewing machine.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhZhFHWnx0fMrZaXwUfw8aftR2b7thnpm-nkHCyx_43CEz-u7cPJ9Ni3sgI-YyhjPzPHeUvSufdpt3Zg3_BEPgELWP_W8nDIX5u-hG1Cloe0_dhJHQ2XWe4-Bms9Vlk-_1zsEBzDe3_v8w/s320/19.+Power+Socket.png)
20. Foot Pedal: The foot pedal operates the speed of the sewing machine, electrically.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjOF50mx_urEVIgs3BqWL_-AS6QG4JvWTGKYBHIIfx9o0u9jJ2dpUUk7XYVtM2WZsRCGKupbsaytHq3mbbp_2jPsGqeJ-4-S9VBxipP5z5BEKUgzBdu87uZmiFWuXUxF2pogmf8lI1l8cM/s320/20.+Foot+Pedal.png)

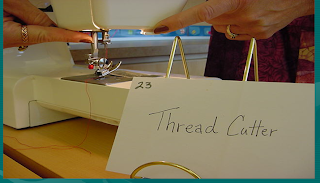

21. Thread Cutter: The thread cutters cut the threads at the end of a row of stitching to disconnect your fabric from the sewing machine.
![](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh-It7GdfTSOuk4M6q1if8lQSryJVuj6u3XjnwUtsqMv-BuklJFkE1kyNpw6-uDZy-ly8rYJpiD3iJgjph26kKBmung1RjHOt4BFHEl7w7ytKuxFnlgdQKmKJ9-vH1begspbIwg0GlKVPU/s320/21.+Thread+Cutter.png)
22. Take-Up-Lever: The take-up-lever pulls the thread back after each stitch, so that the stitches will lay evenly into the fabric.
